EMPIRICAL LABS  |  Barcode: EL8 DISTRESSOR

EL8-XXX

$2,795.00 CAD

1 in stock

Description

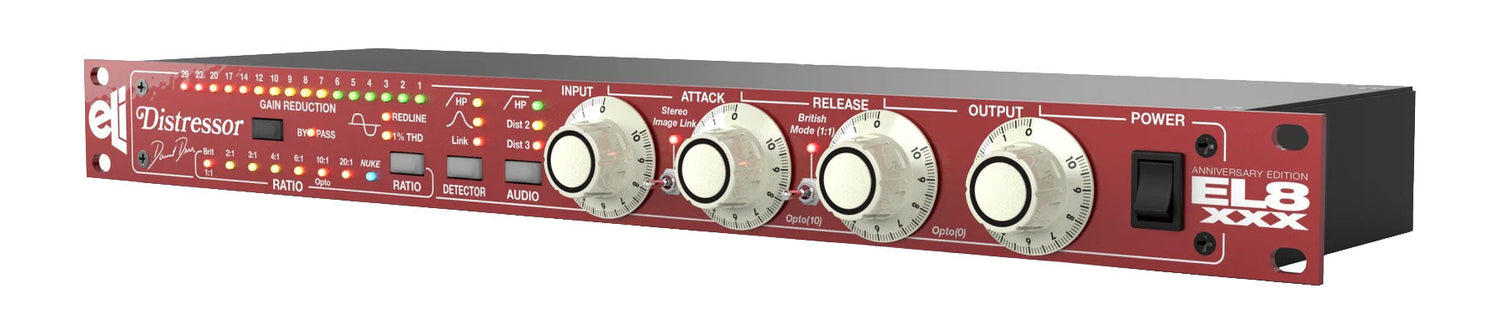

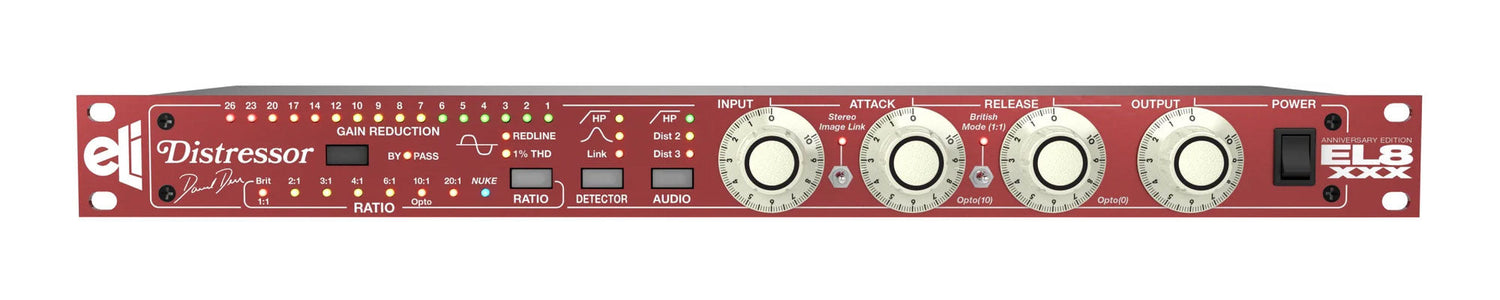

The Empirical Labs EL8-XXX 30th Anniversary Distressor Compressor/Limiter celebrates three decades of one of the most iconic dynamics processors ever made. This limited-edition version pairs the unmistakable Distressor sound with a striking anniversary design, while preserving the versatility that has made it a studio staple worldwide. Equally at home delivering transparent level control or bold, character-rich compression, the EL8-XXX adapts effortlessly to vocals, drums, bass, guitars, and full mixes. It’s a true “do-everything” compressor that rewards both subtlety and experimentation.

What makes this anniversary edition especially compelling is how it blends precision with personality. Multiple compression curves allow the unit to move from smooth, musical control to extreme limiting, while the famous British mode delivers aggressive, explosive energy inspired by classic FET designs. Added harmonic coloration options and thoughtful signal-shaping tools give engineers creative freedom without sacrificing clarity or punch. Whether used gently to enhance dynamics or pushed hard for attitude and impact, the EL8-XXX Distressor remains a modern classic—flexible, musical, and endlessly inspiring in professional studio workflows.

Specifications

General Specifications
Device Type: Analog Compressor/Limiter
Channel Configuration: Single-Channel
Compression Topology: FET
Control Architecture: Digitally Controlled Analog
Edition: 30th Anniversary
Form Factor: 19-inch Rackmount
Rack Height: 1U

Compression Characteristics
Compression Ratios: 1:1
Compression Ratios: 2:1
Compression Ratios: 3:1
Compression Ratios: 4:1
Compression Ratios: 6:1
Compression Ratios: 10:1 (Opto-Style Detector)
Compression Ratios: 20:1
Limiting Mode: Nuke (Brickwall)
British Mode: All-Buttons-In Style Compression

Controls
Input Level: Variable
Attack Time: Variable
Release Time: Variable
Output Level: Variable
Ratio Selection: Push Button
Stereo Image Link: Switchable
Hard Bypass: Switchable

Timing Specifications
Attack Time Range: 50 µs to 50 ms
Release Time Range: 0.05 s to 3.5 s
Release Time Range (Opto Mode): Up to 20 s

Audio Performance
Frequency Response: 2 Hz to 160 kHz (–3 dB, Clean Mode)
Dynamic Range: 110 dB (1:1 Mode)
Distortion Modes: Distort 1
Distortion Modes: Distort 2
Distortion Modes: Distort 3

Sidechain and Filtering
High-Pass Filter: Audio Path
High-Pass Filter: Detector Path

Metering and Indicators
Gain Reduction Meter: LED
THD Indicator: 1% LED
Redline Indicator: LED

Transformers and Signal Path
Input Transformer: Triad HS-56
Circuit Type: Solid State
Transformer Configuration: Input Transformer Coupled

Electrical Characteristics
Input Impedance: 20 kΩ
Output Impedance: < 75 Ω

Connections
Audio Input: XLR
Audio Input: 1/4-inch TRS
Audio Output: XLR
Audio Output: 1/4-inch TRS
Stereo Link Connection: 1/4-inch TRS

Physical Characteristics
Chassis Material: Steel
Width: 19 in
Height: 1.75 in
Depth: 10 in
