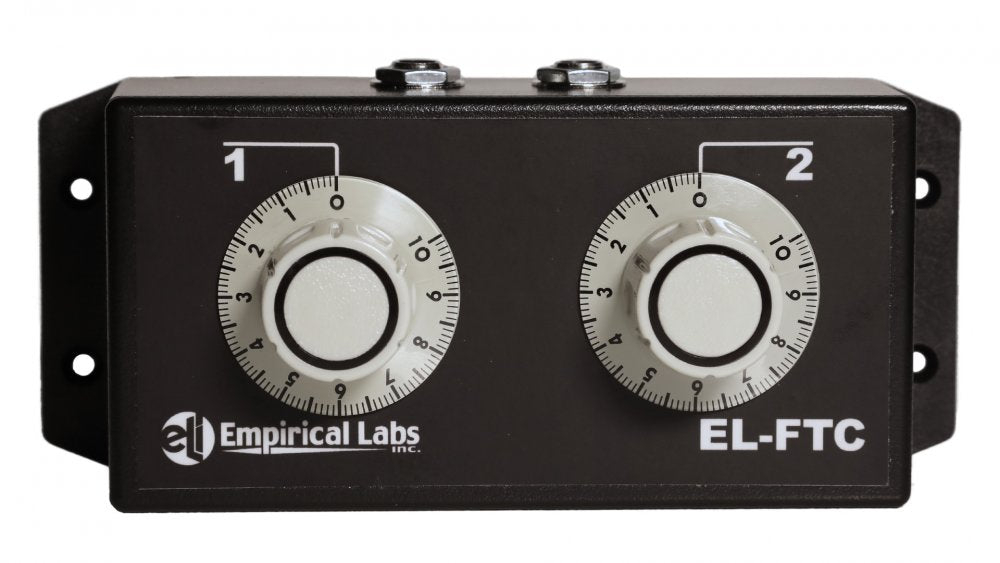

EL-FTC

Expand the range of your FATSO and fine-tune the relationship between the Compression and Saturation circuits with the EL-FTC FATSO Threshold Controller. The EL-FTC plugs directly into the Sidechain Inserts on the back of the FATSO, giving you instant access to a world of tonal possibilities.

Frequency Response " 2 Hz to 60 kHz in clean audio mode (+0, -3 dB).

Dynamic Range " 110 dB from maximum output (20 %THD soft clipping) to minimum output. Greater than 100 dB signal to noise.

Distortion " Ranges between .06% and 20% depending on mode and settings.

I/O " DC Coupled input and outputs.

Compressor Time Constants " Attack range 1ms " 60ms. Release range .05sec " 3.5 seconds. Attack and Releases are fixed by the compression type selected.

Power Consumption " 15 Watts Max.

Metal Chassis " single height 1.75″ high, 10″ deep, 19″ wide.

Shipping info " Box dimensions 22.5″ x 18.5″ x 3 1/4″.
