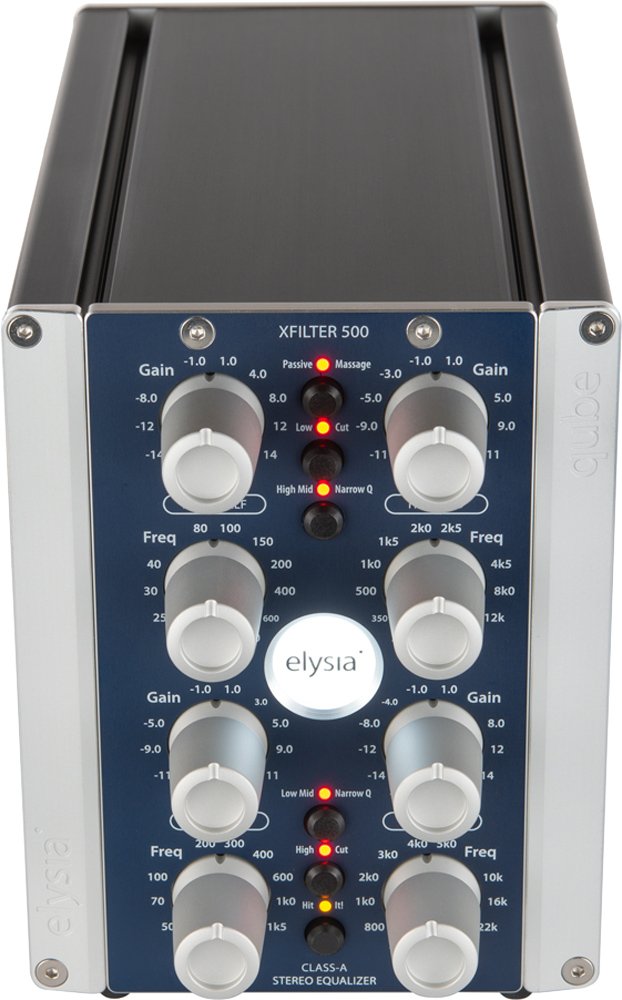

Xfilter qube

A yummy and magically linked stereo equalizer in the box. With our xfilter 500 included, there is no excuse for bad ingredients like lost frequencies, flat sounds, and flavorless audio soups.

Now you have all the great transparency and the pure spicey Class-A analog sound at your fingertips for an affordable price.

BUILD QUALITY:

The xfilter, just like all our products, is designed, engineered and handcrafted in Germany.

CLASS-A TOPOLOGY:

Consequently represents the art of discrete signal processing.

TRUE STEREO LINK:

As one of the few exceptions in the market, the xfilter 500 processes both of its channels with just one set of controllers - a true stereo linked EQ.

COMPUTER-SELECTED POTENTIOMETERS:

Every single dual and quad layer pot we buy is measured with custom computer routines, and only the lowest tolerance ones go into production.

LOW TOLERANCE CAPACITORS:

The special series of film caps used for the xfilter performs twice as good as the industry standard in terms of component tolerance.

FREQUENCY RESPONSE:

< 10 Hz - 400 kHz (-3.0 dB)

THD+N:

• @ 0 dBu, 20 Hz - 22 kHz: 0.0018 %

• @ +10 dBu, 20 Hz - 22 kHz: 0.005 %

NOISE FLOOR:

• 20 Hz - 20 kHz (A-weighted): -98 dBu

DYNAMIC RANGE:

• 20 Hz - 22 kHz: 120 dB

MAXIMUM LEVEL:

• Input: +21 dBu

• Output: +21 dBu

IMPEDANCE:

• Input: 10 kOhm

• Output: 68 Ohm

POWER CONSUMPTION:

• Total: 210 mA

• Per slot: 105 mA
