ELYSIA

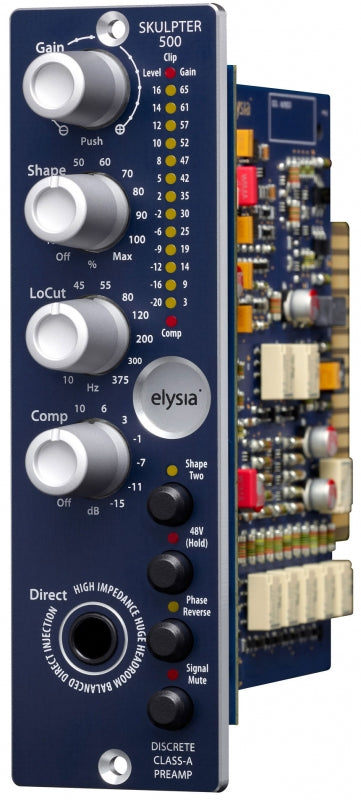

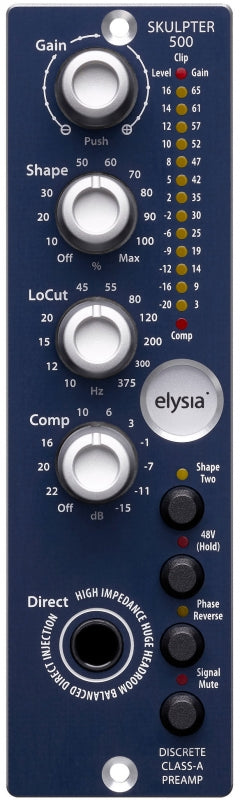

Skulpter 500

$1,285.00 CAD
Request a Quote – For Authorized Dealers Only

Description

The skulpter 500 is the ultimate recording front end. Its audiophile preamp is based on single resistors controlling a fully discrete Class-A amplifier capable of complementing any microphone with a remarkably true and natural sound. If additional mojo is needed, two variable saturation/filter stages and an intelligent onboard compressor make voices and instruments sound like a finished record right from the start.

Whether clean or colored, the sonic bliss does not stop at your mic locker. The skulpter 500 provides a balanced DI input with significant headroom, so just about any signal coming from guitars, basses, synths and effects will benefit greatly from the skulpter 500's pristine amplification and versatile processing qualities.

Way more than just a preamp, the skulpter 500 is a complete recording solution - everything you'll ever need in front of your DAW.

Features

100% Discrete Class-A Topology


Pristine audio path and signal processing.

Audiophile Gain Staging


Single resistors controlled by a relays cascade.

Dual Sound Shaper


Mojo machine with filters and harmonics.

Intelligent Onboard Dynamics


Smart controlled musical compression.

Variable Low Cut Filter


Flexible low frequency clean up.

Balanced DI


Instrument input with massive headroom.

Multifunction Meter


Level, gain, compression and clipping.

Stepped Controllers


Exact and repeatable settings.

Specifications

Total gain range:

3 - 65 dB in 1.5/2 dB steps

Frequency response

@ 3 dB gain: 10 Hz - 170 kHz (-3 dB)

@ 29 dB gain: 10 Hz - 170 kHz (-3 dB)

THD+N

@ +6 dBu out level, 3 dB gain, 20 Hz - 22k Hz: 0.007%

@ +6 dBu out level, 29 dB gain, 20 Hz - 22 kHz: 0.007%

Noise floor

@ 3 dB gain, 20 Hz - 20 kHz (A-weighted): -97 dBu

@ 29 dB gain, 20 Hz - 20 kHz (A-weighted): -93 dBu

Common Mode Rejection Ratio

@ +6 dBu out level, 29 dBu gain, 1 kHz: 87 dB

@ +6 dBu out level, 29 dBu gain, 10 kHz: 69 dB

Maximum level

Mic Input: 19 dBu

DI Input: 19 dBu

Output: 21 dBu

Impedance

Mic Input: 13.6 kohm

DI Input: 1 megohm

Output: 62 ohm

Power Consumption

Total: 116 mA
