BAREFOOT SOUND

Footprint01 Gen2

$6,265.00 CAD
Request a Quote – For Authorized Dealers Only

Description

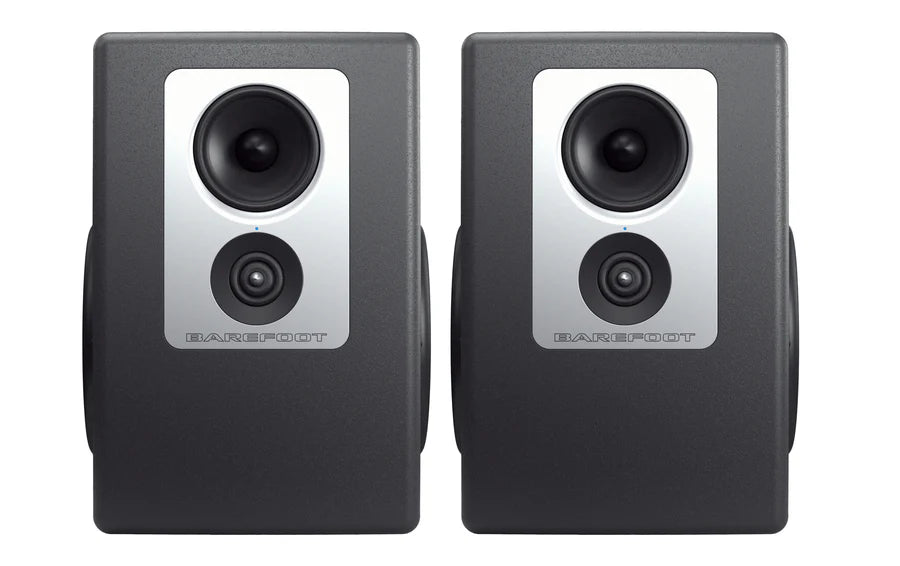

The Barefoot Sound Footprint®01 Gen2 is a flagship studio monitor designed to bring cutting-edge performance to modern production environments, whether you're working in stereo, immersive audio, or a multi-channel setup. Completely redesigned from the original Footprint01, the Gen2 version features an all-new architecture, upgraded components, and a host of next-generation technologies, all packed into a compact, robust enclosure.

At its core, the Gen2 uses a tri-amplified 3-way system powered by dedicated Class D amps: 60W for the tweeter, 150W for the midrange, and a powerful 500W for the dual 8-inch woofers. This configuration ensures headroom and clarity across a frequency range of 36 Hz to 40 kHz, with crossover points precisely set at 170 Hz and 3600 Hz. The newly engineered 1" dual ring radiator tweeter, 5" aluminum cone midrange, and Dual-Force™ 8" woofers have been specifically designed for reduced distortion, enhanced transient response, and ultra-clean output even at high SPLs of ≥113 dB.

Features

Three-Way Tri-Amplified Design
Each driver has its own dedicated amplifier for clear, balanced sound at all volumes.

New Generation Drivers
Upgraded tweeter, midrange, and dual woofers deliver more power, detail, and lower distortion.

Advanced DSP and SPOC™ Technology
Offers high-resolution, low-latency sound with better clarity and accurate signal translation.

MEME™ Speaker Emulation
Instantly switch between different speaker voicings to check your mix on multiple references.

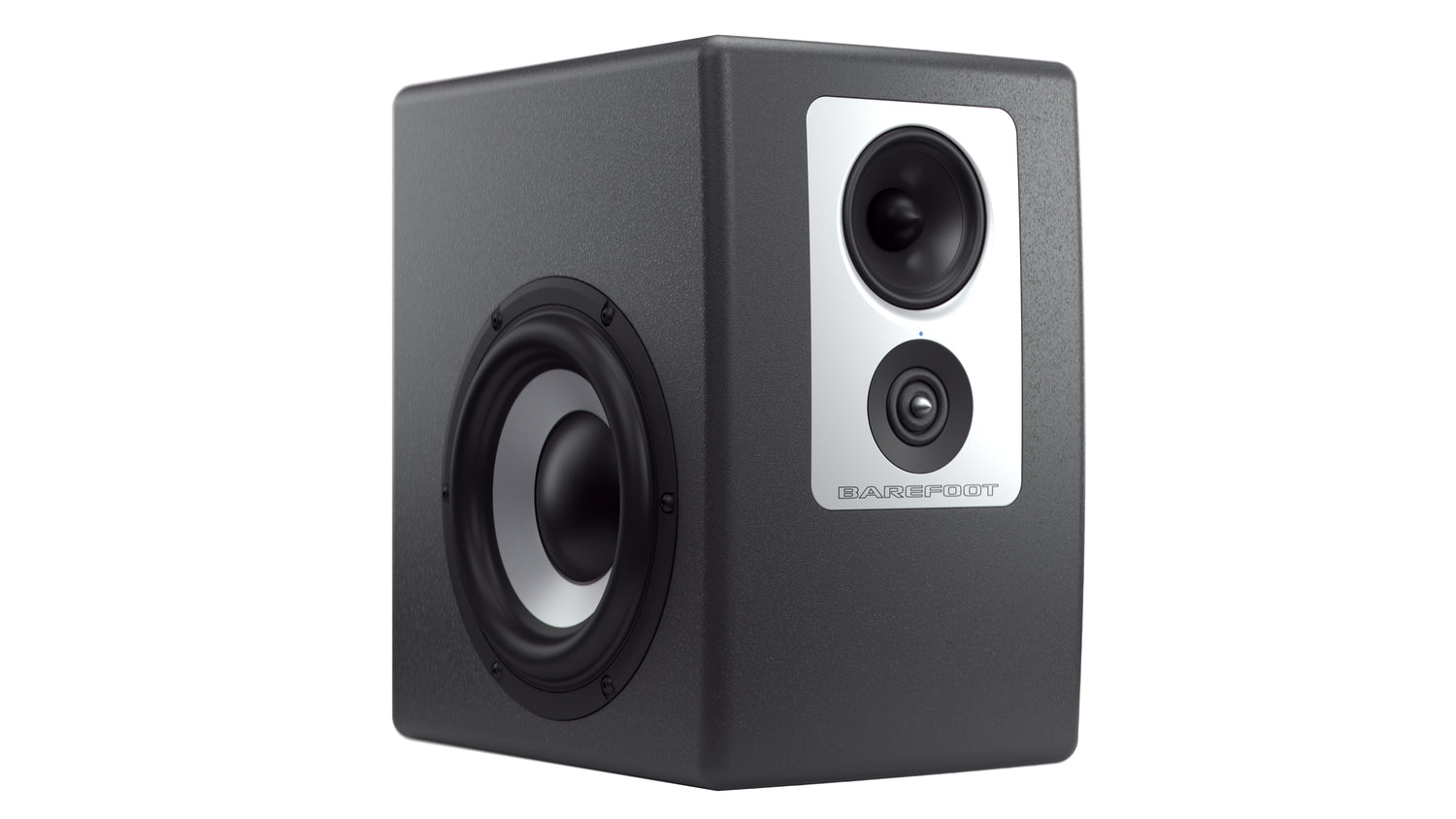

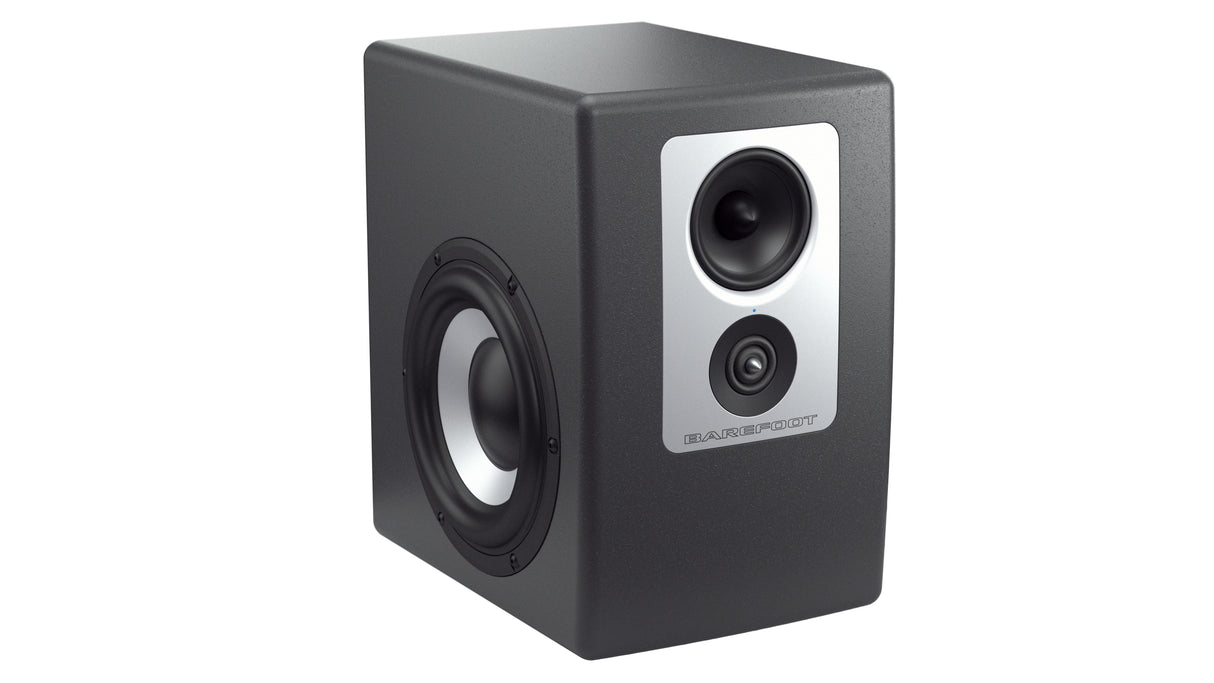

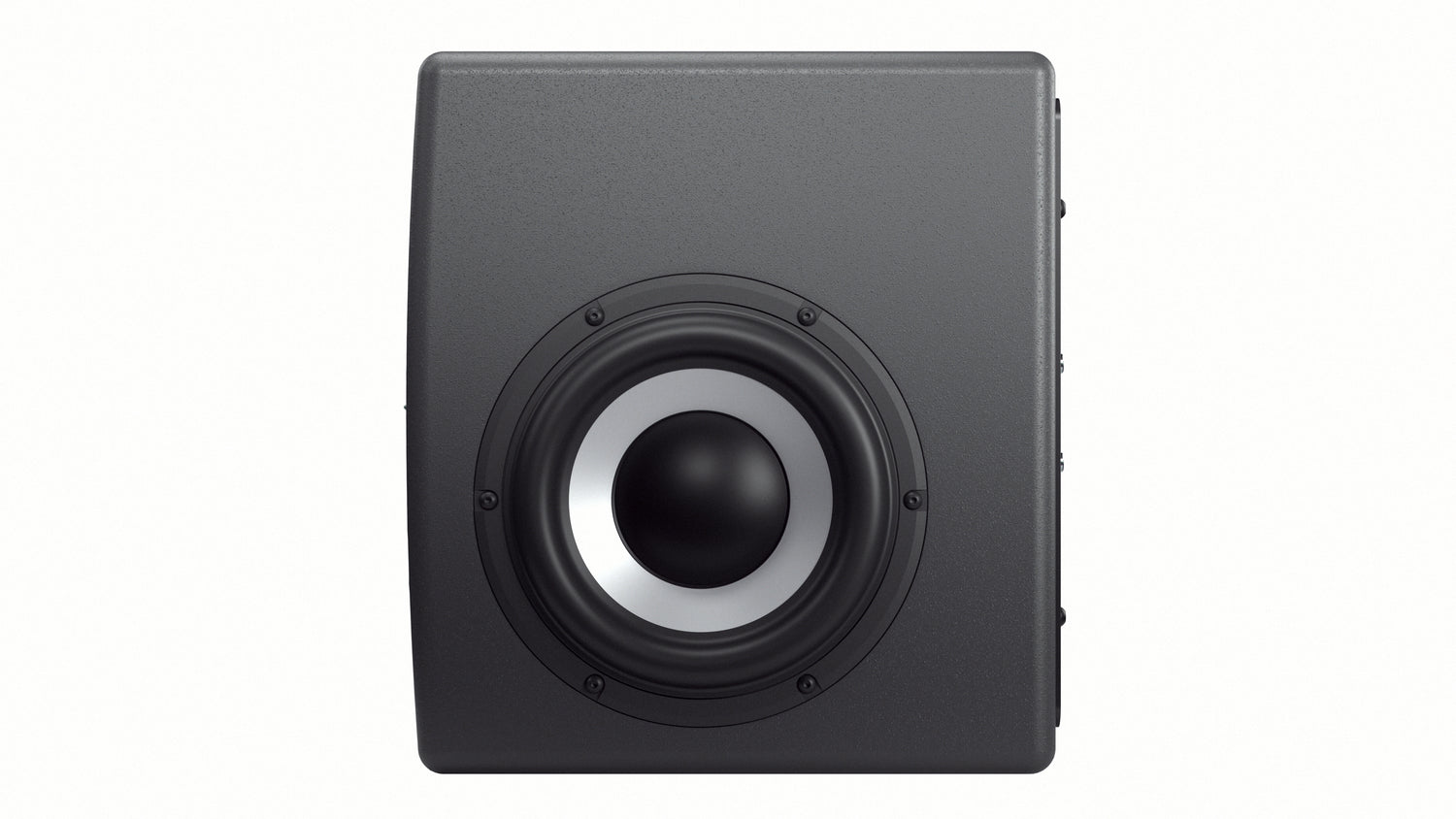

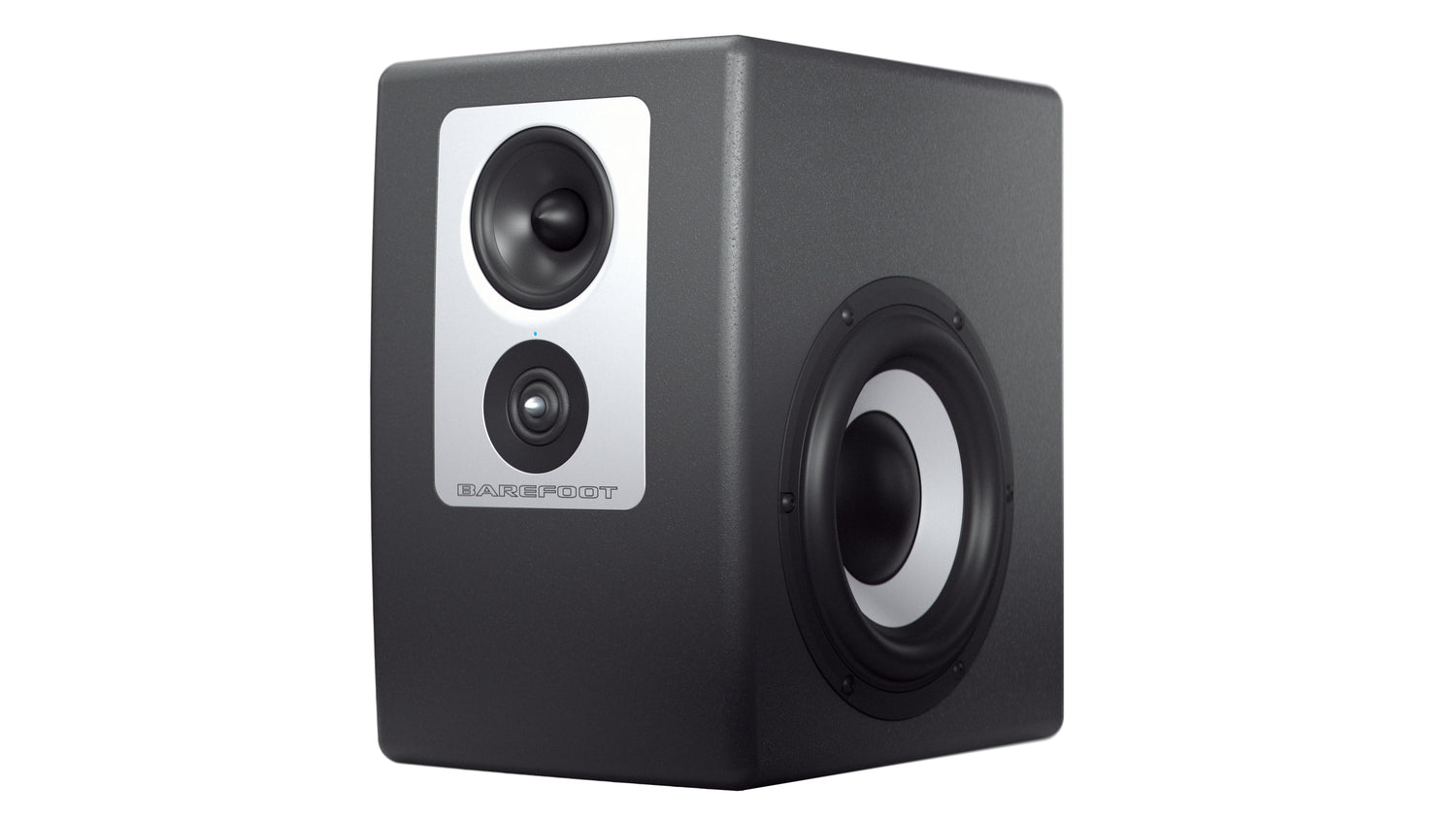

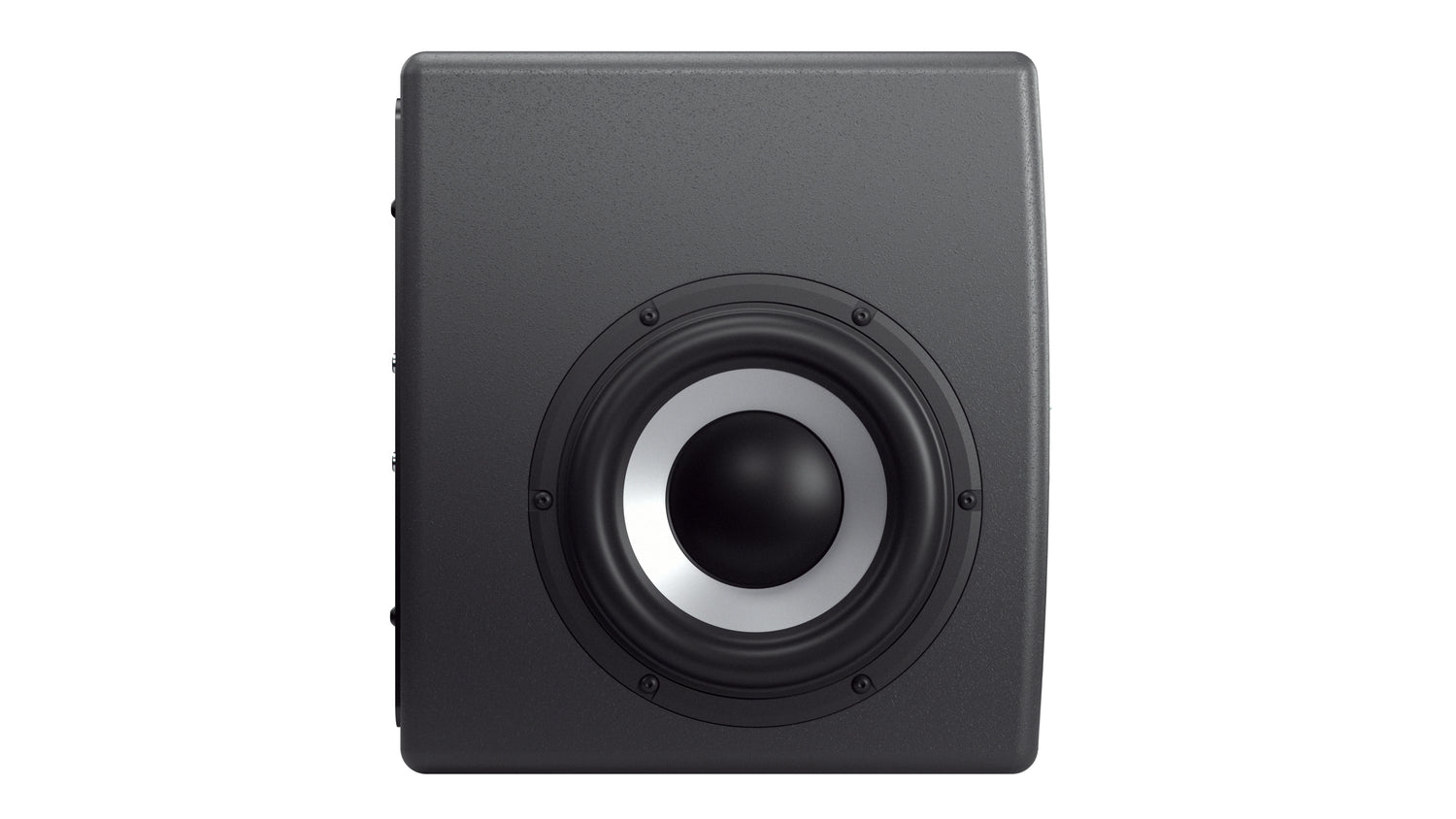

Dual-Force™ Woofers
Opposing 8-inch woofers cancel internal vibrations and produce tight, clean bass.

Refined Cabinet Build
Rigid MDF construction with acoustic damping improves stability and minimizes resonance.

High Max Output with Low Noise
Delivers up to 113 decibels of sound with minimal distortion and high signal-to-noise ratio.

Ideal for All Studio Sizes
Perfect for medium to large rooms, immersive multi-speaker setups, or professionals who need power and precision.

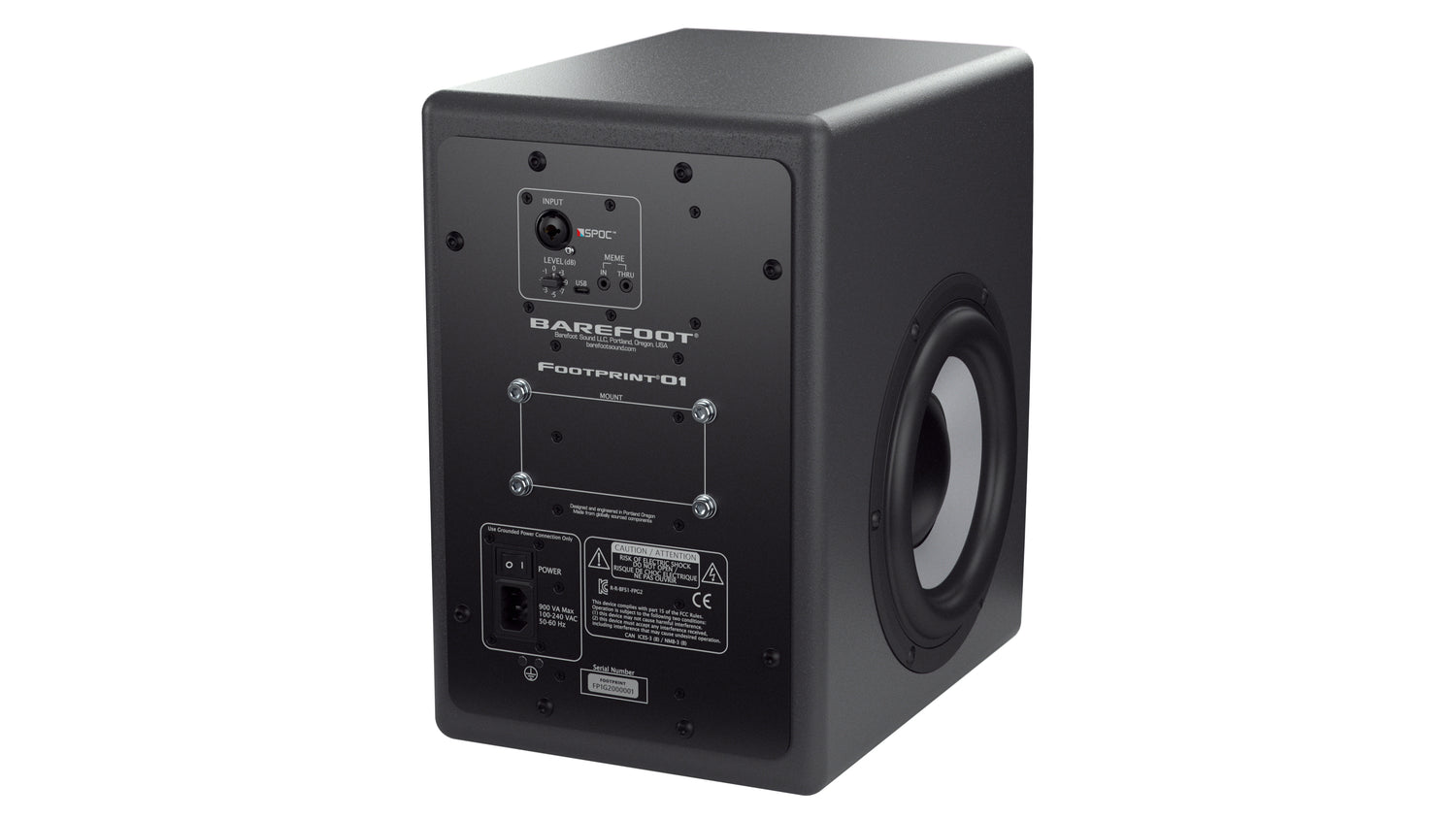

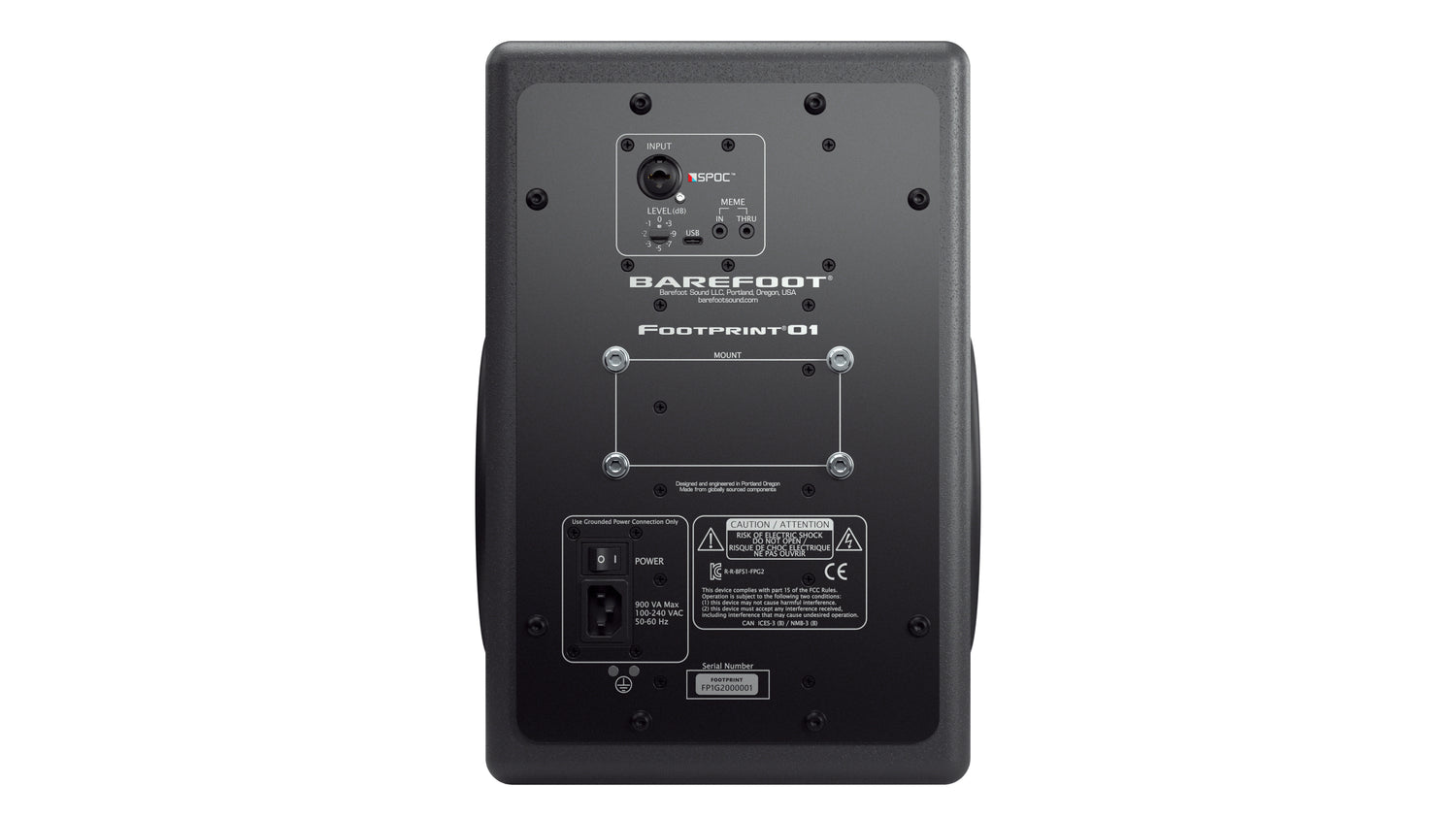

Simple Rear Controls
Includes level control and MEME selector input with visual LED feedback.

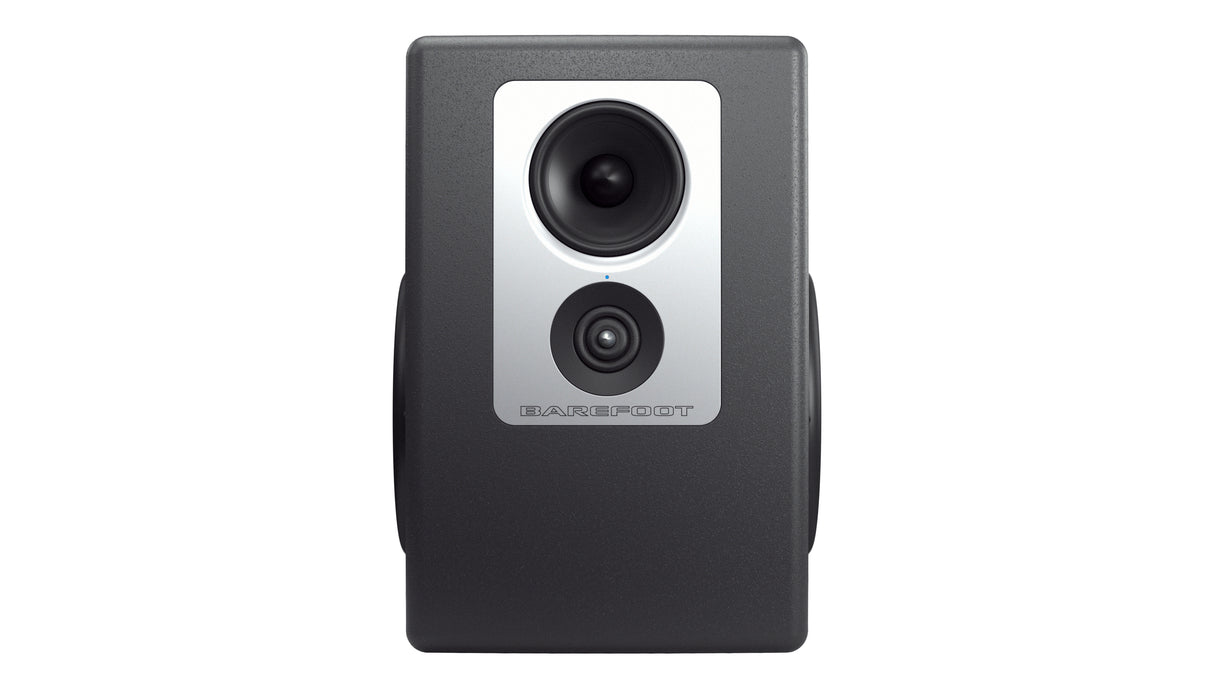

Modern Look, Pro Finish
Textured gray cabinet with a clean, industrial front panel.

Specifications

General Specifications:
Type: 3-way active studio monitor
Amplification: Tri-amplified Class D
Crossover Frequencies: 170 Hz / 3600 Hz
Maximum SPL: ≥113 dB
Frequency Response: 36 Hz – 40 kHz (±3 dB), 39 Hz – 30 kHz (±1 dB)
Bass Extension: -3 dB @ 36 Hz, Q = 0.762, Slope = 18 dB/octave
Input Sensitivity: 90 dB @ 1 meter with -15 dBV input signal
Input Impedance: 20 kOhms (balanced XLR)
Signal-to-Noise Ratio: ≥100 dB
Latency: 3 ms
Power Supply: 85–265 VAC universal input
Power Consumption (Idle / Max): 12 W / 1000 W

Amplification:
Tweeter Amp: 60 W
Midrange Amp: 150 W
Woofer Amp: 500 W

Drivers:
Tweeter: 1" dual-ring radiator, high magnetic flux motor, rear waveguide chamber
Midrange: 5" aluminum cone, 32 mm voice coil, high magnetic flux motor
Woofers: Dual 8" aluminum cone woofers with ±9.5 mm linear excursion, Dual-Force™ Technology

Cabinet Design:
Material: Medium-density fiberboard (MDF)
Baffle: Compound radius with extra thick machined aluminum faceplate
Volume: 12.8 liters internal
Mounting: Wall mount inserts compatible with Triad-Orbit and König & Meyer
Finish: Textured gray polyester coating
Design: Sealed enclosure with full acoustic damping

Connectivity & Controls:
Input: Balanced XLR (Pin 1 ground, Pin 2 positive, Pin 3 negative)
Level Control: 8-position stepped attenuator (+3 to -9 dB)
MEME™ Input/Thru: 3.5 mm stereo jack (passive control)
Factory Calibration Port: USB (non-audio)

DSP & Technology:
A/D Conversion: 24-bit / 96 kHz with SPOC™ (Spectrally Optimized Conversion)
DSP Engine: Low latency (3 ms), optimizes bass and reduces distortion

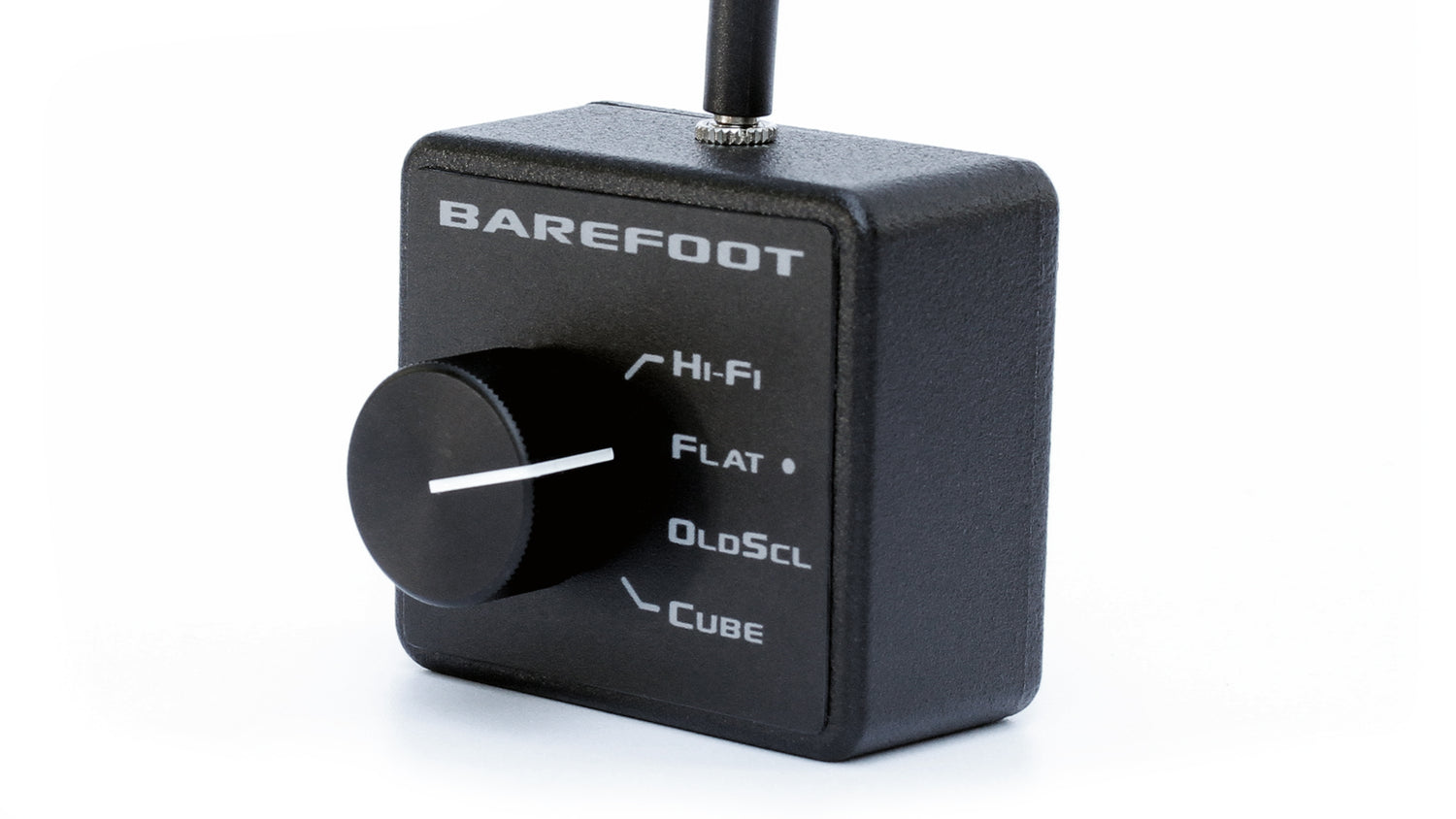

MEME™ Emulation Modes: FLAT, HI-FI, OLDSCL (NS10M), CUBE (classic mix cube)
Peak & RMS Limiters: Active on LF and HF drivers
Overcurrent Protection: Auto-shutdown with reboot recovery

Dimensions & Weight:
Speaker Dimensions (H x W x D): 14.25" x 10.20" x 13.63" (362 mm x 259 mm x 346 mm)
Speaker Weight: 40.4 lbs (18.3 kg)
Shipping Dimensions (H x W x D): 22.75" x 13.8" x 17.5" (578 mm x 350 mm x 445 mm)
Shipping Weight: 51.0 lbs (20.4 kg)

Included Features:
MEME™ Multi Emphasis Monitor Emulation
SPOC™ analog crossover pre-conversion
High precision 28-bit internal processing
Aluminum driver baffle
LED status indicator
Rear-mounted rocker power switch.
