API

Select TranZformer LLX

$395.00 CAD
Request a Quote – For Authorized Dealers Only

Description

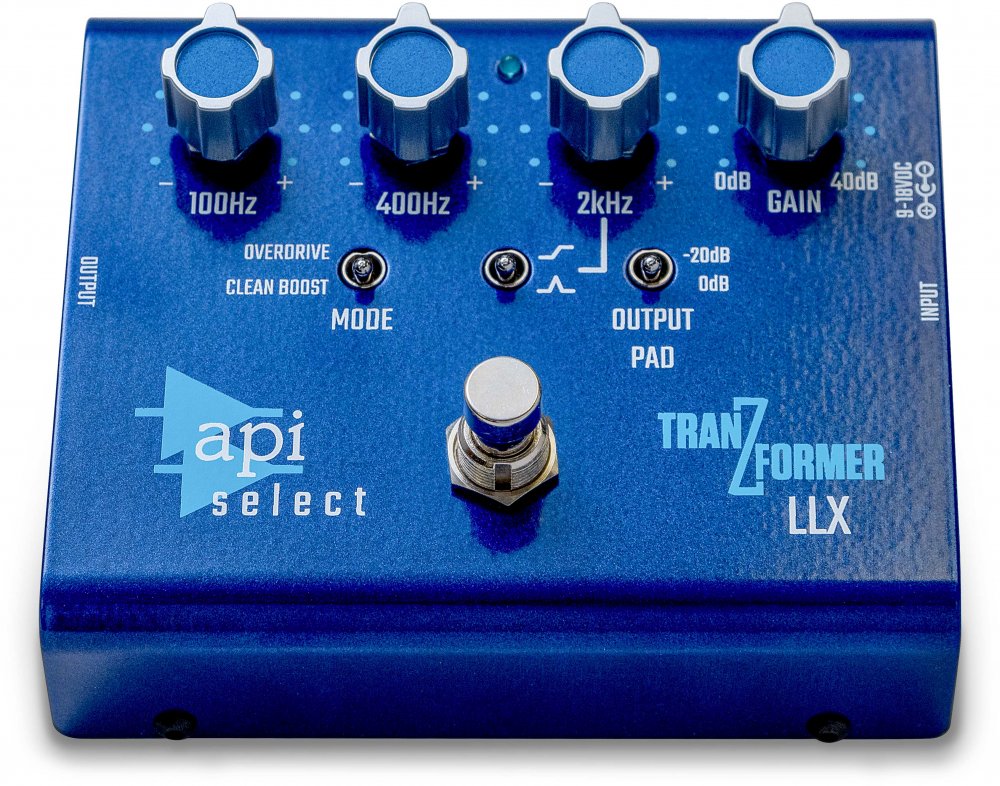

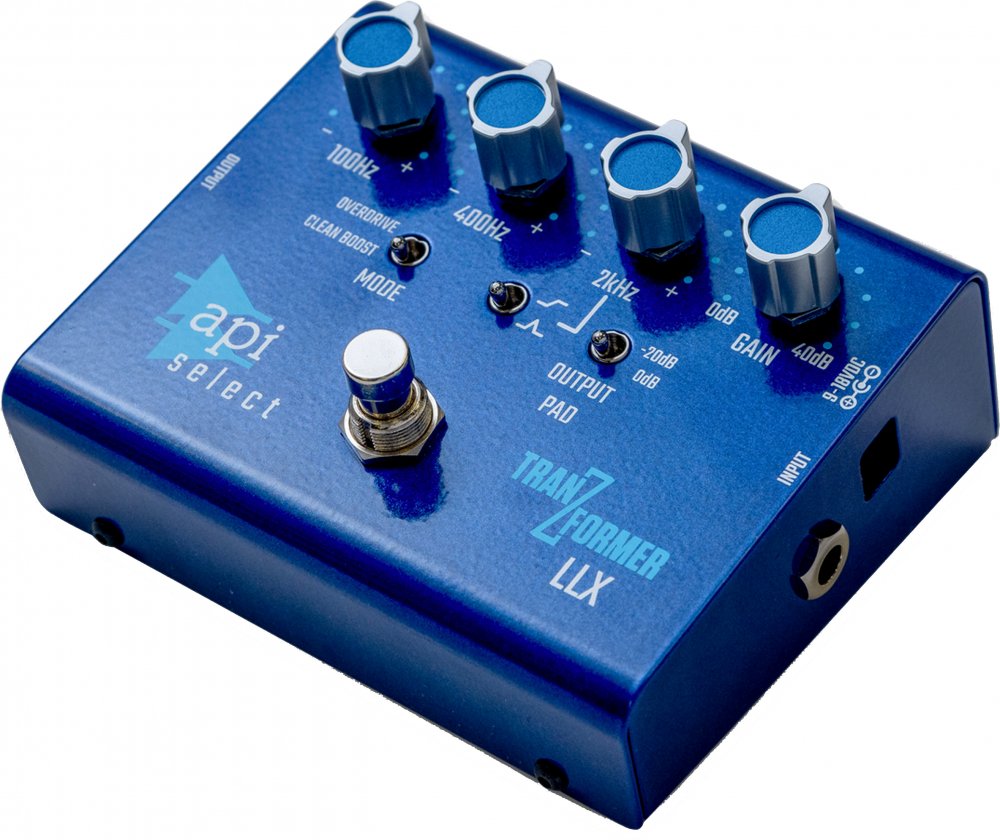

The API Select TranZformer LLX incorporates API's legendary EQ circuit into a versatile and compact bass guitar effects pedal. Designed to easily fit into your pedal board and engineered to run on standard 9V or 18V power supplies, the LLX offers +/- 15dB of gain on 3 bass guitar specific frequencies. Additionally, the gain stage can be switched from Clean Boost to Overdrive mode to drive the input OpAmp and add even more tones to your arsenal. Other features include a buffered bypass, -20dB output pad, selectable peak/shelf for upper frequency range, transformer output, and of course the classic API sound.

Features

Proprietary API 2510 OpAmp

Signature API output transformer

3-band EQ each with +/-15 dB of gain

OpAmp overdrive circuit

40 dB of gain

-20 dB output pad

Buffered bypass

Specifications

Input connection: 1/4" Hi-Z unbalanced instrument input
Input Impedance: 1MΩ
Bypass: Yes, buffered, 0dB
Output connections: 1/4" Hi-Z unbalanced output
Output Impedance: Hi-Z output: Less than 1kΩ
Input Gain Control: 0dB - 40dB, Variable
Output Pad: 0dB to -20dB, Switched
Maximum output level before clipping: +15dBu (9VDC)
+22dBu (18VDC)
Frequency Response: +0dB, -1dB, 20-20kHz (tone controls at center detent)
Tone Control: 100Hz & 400Hz Peaking, 2kHz Shelving/Peaking (w/switch), continuously-variable boost/cut, +/-15dB range.

API 2510 amplifier overdrive (Switched) placed before tone controls. Clean boost amplifies the signal with no added distortion.
Power Supply: 9-18VDC @ 100mA
Size: 4.6" x 3.8" x 3"
Size (Boxed for Shipping): 6" x 4.5" x 4.5"
Actual Weight: 1.5 lbs.
Shipping Weight: 2 lbs.
